  • Product Description

    Channel magnets by fixing the strong neodymium magnet into a Zn/Nickel/Chrome/Painting plated channel shape steel circuit, to form a U shape magnet assembly with holding power on one large surface. The pulling force is many times stronger than a single piece of magnet only. Different size of channel magnets with different pulling force.



    Characteristics

    ●Channel magnets are resistant under high working temperature, depends on magnet grades.

    ●There are middle holes that using flathead screw for mounting.

    ●Innovative rectangular design with steel casing greatly improves the strength.

    ●All round or channel shape can be produced with variety of coatings according to clients' requirements.



    Application

    Its main function is for fixing or holding, so this assembly is widely use in home or industrial areas, such as warehouse shelving, secure cabinet doors, hold car boards/name signs, fixtures and any other ferrous metal objects etc.



    ꂓChannel Magnets –strong neodymium magnet inside

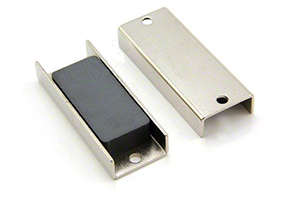

  • ꂓChannel Magnets—Ferrite magnets inside

    Product Description

    Channel magnets by fixing the Ferrite magnet into a Zn/Nickel/Chrome/Painting plated channel shape steel circuit, to form a U shape magnet assembly with holding power on one large surface. The pulling force is many times stronger than a single piece of magnet only. Different size of channel magnets with different pulling force.



    Characteristics

    ●Channel magnets are resistant under high working temperature around 120degree C .

    ●There are middle/side holes that using screws for mounting.

    ●Innovative rectangular design with steel casing greatly improves the strength.

    ●All round or channel shape can be produced with variety of coatings according to clients' requirements.



    Application

    Its main function is for fixing or holding, so this assembly is widely use in home or industrial areas, such as warehouse shelving, secure cabinet doors, hold car boards/name signs, fixtures and any other ferrous metal objects etc.



  • ꂓChannel Magnets—Flexible magnets inside

    Product Description

    Channel magnets by fixing the flexible magnet into a Zn/Nickel/Chrome/Painting plated channel shape steel circuit, to form a U shape magnet assembly with holding power on one large surface. The pulling force is many times stronger than a single piece of magnet only. Different size of channel magnets with different pulling force.



    Characteristics

    ●Channel magnets are resistant under high working temperature around 120degree C .

    ●There are middle/side holes that using screws for mounting.

    ●Innovative rectangular design with steel casing greatly improves the strength.

    ●All round or channel shape can be produced with variety of coatings according to clients' requirements.



    Application

    Its main function is for fixing or holding, so this assembly is widely use in home or office areas,   secure cabinet doors, hold car boards/name signs, hold keys and any other ferrous metal objects etc.
